RANGE
Standard 3 Phase Induction motors with rating 0.12 KW to 55 KW are available from frame sizes 63 to 250 with standard speeds and various types of construction.

STANDARDS
Performance conforms to IS: 325 and dimensions according to IS: 1231 and IS: 2223

RATINGS
Motors are rated for continuous duty type S1 at an ambient of 45 Deg. C and site altitudes of up to 1000 M above mean sea level.

VOLTAGE AND FREQUENCY
Motors designed are for a rated voltage of 415V +/-10%, 3 Phase, 50 Hz +/-5% supply. Motors with special designs of Voltage/Frequency can be offered on request.

PAINT
Standard synthetic enamel paint is provided which is suitable for tropical conditions. However, special paint can be provided on request.

INSULATION SYSTEM
All standard motors are provided with class "F" insulation system. Motors with any other class of insulation (”H”) / ( “A”) can be offered on request.

DEGREE OF PROTECTION
Motors have Ip55 degree of protection as a standard feature conforming to IS 4691. Motors can be supplied with protection Ip56 as well as Ip65 on special request.

TERMINAL BOX
All motors are provided with terminal box on top front as seen from the drive end or on the side of the motor body. Terminal box can be rotated in steps of 90 deg.

COOLING & VENTILATION
Type of cooling is as per IS 6362. All motors have an external bidirectional centrifugal fan.

NOISE
Motors are designed for low noise level in accordance with IS 12065.

BEARING SYSTEM
All motors are equipped with pre-lubricated bearings. Regreasing facility can be provided on request.

EARTHING TERMINALS
Terminals are provided in all the motors. Two on the stator housing and one in T. Box.

APPLICATIONS
Air Compressor, Pumps, Textile Machinery, Pharmaceutical Machinery, Chemical Machinery, Machine Tools, Crane and Hoists, Blowers, Material Handling Equipments and Geared Motors.

CONSTRUCTION

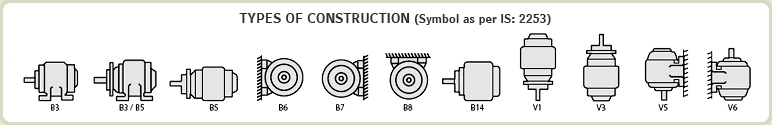

Standard motors with single shaft extension are for horizontal foot mounting* (B3 as per IS : 1231) and vertical flange / face mounting (B5 & B14 as per IS : 2223). Other types of construction as shown above can be offered on request.

MATERIAL OF CONTRUCTION
All standard motors are in CI material. Motors upto 100L frame can be offered in Aluminium body also.



* We are also equipped to supply motors in different construction of materials and also special designs, voltage, frequency, protection class as per specification of our International standard or as per requirement of our valued customers.

* Due to continuous R&D, design and specifications are subject to change without notice.
